CBD continuous flow 2K dispenser

Name: CBD continuous flow 2K dispenser
Brand: mta-components
SKU: 3C00730-10-011-000
Price: 3996.50 CHF
Availability: InStock

CHF 3,996.50

Shipping cost incl.

Precise. Versatile. Reliable. The continuous flow solution for every material.

Article number: 3C00730-10-011-000

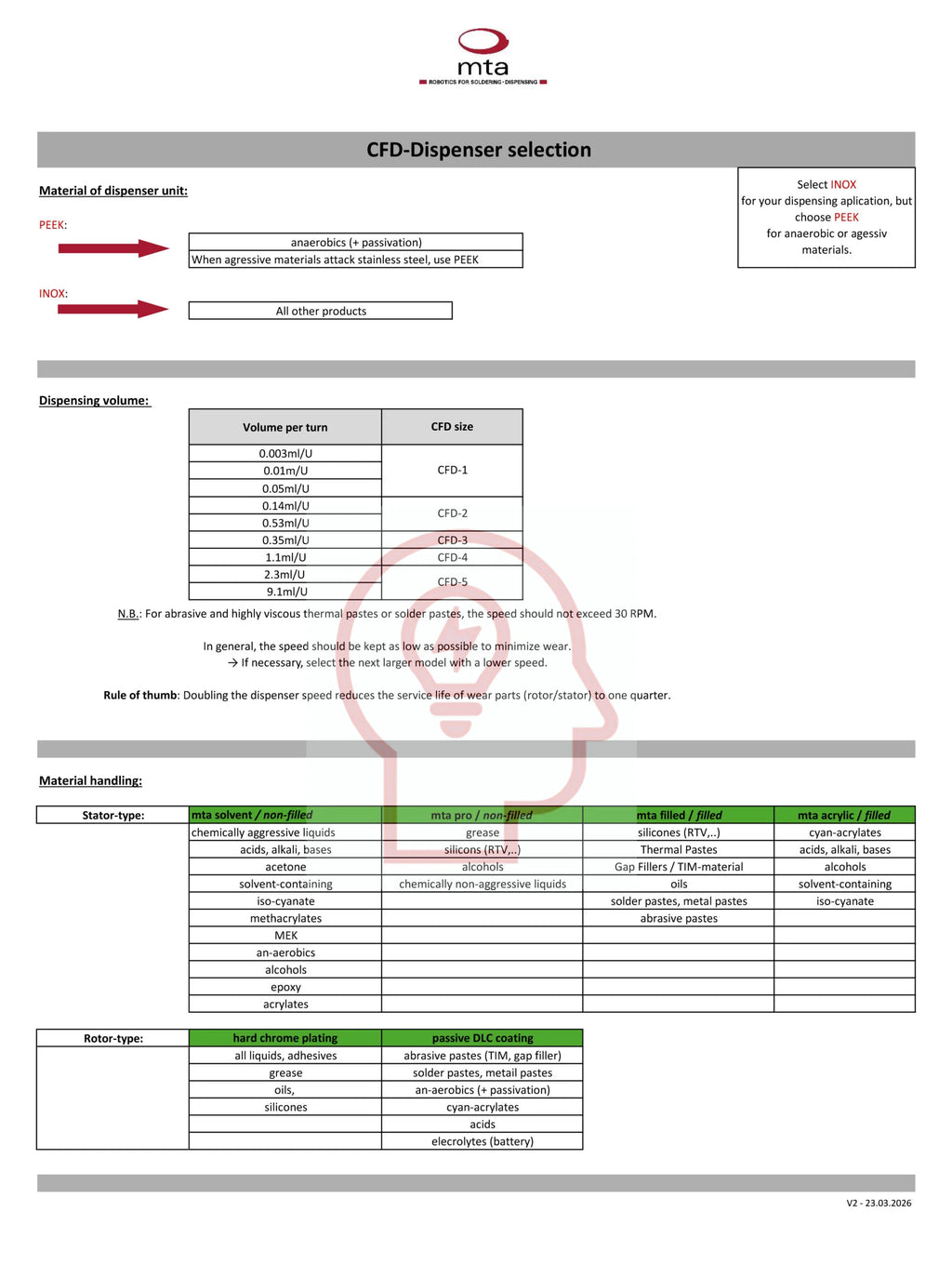

Dispenser selection guide

Based on your volume and material characteristics, find the most suitable CFD dispenser click on the second image on the right.

CFD-1 rotor and stator selection

Use the following chart to select the appropriate rotor and stator:

Rotor-type CFD-1
Volume/turn	hard chrome plating	Passive DLC coating
0.003ml/turn	3I00406-41-000-001	3I00406-42-000-001
0.01ml/turn	3I00406-41-000-002	3I00406-42-000-002
0.05ml/turn	3I00406-41-000-003	3I00406-42-000-003

Stator-type CFD-1
Volume/turn	mta solvent	mta filled	mta pro	mta acrylic
0.003ml/turn	—	—	—	3I00406-34-000-001
0.01ml/turn	—	—	—	3I00406-34-000-002
0.05ml/turn	3I00406-31-000-003	3I00406-32-000-003	—	—

mta solvent / non-filled: high chemical resistance, not for abrasive materials e.g. isocyanate (PU), UV acrylate, solvents, anaerobic adhesives.

mta filled / filled: resistant to chemicals and abrasion e.g. silicone, PU (resin), epoxy (resin), greases, fillers.

mta pro / non-filled: good chemical resistance, minimal abrasion resistance e.g. silicone, PU (resin), epoxy (resin), greases.

mta acrylic / filled: high chemical resistance, for abrasive materials e.g. isocyanate (PU), UV acrylate, solvents.

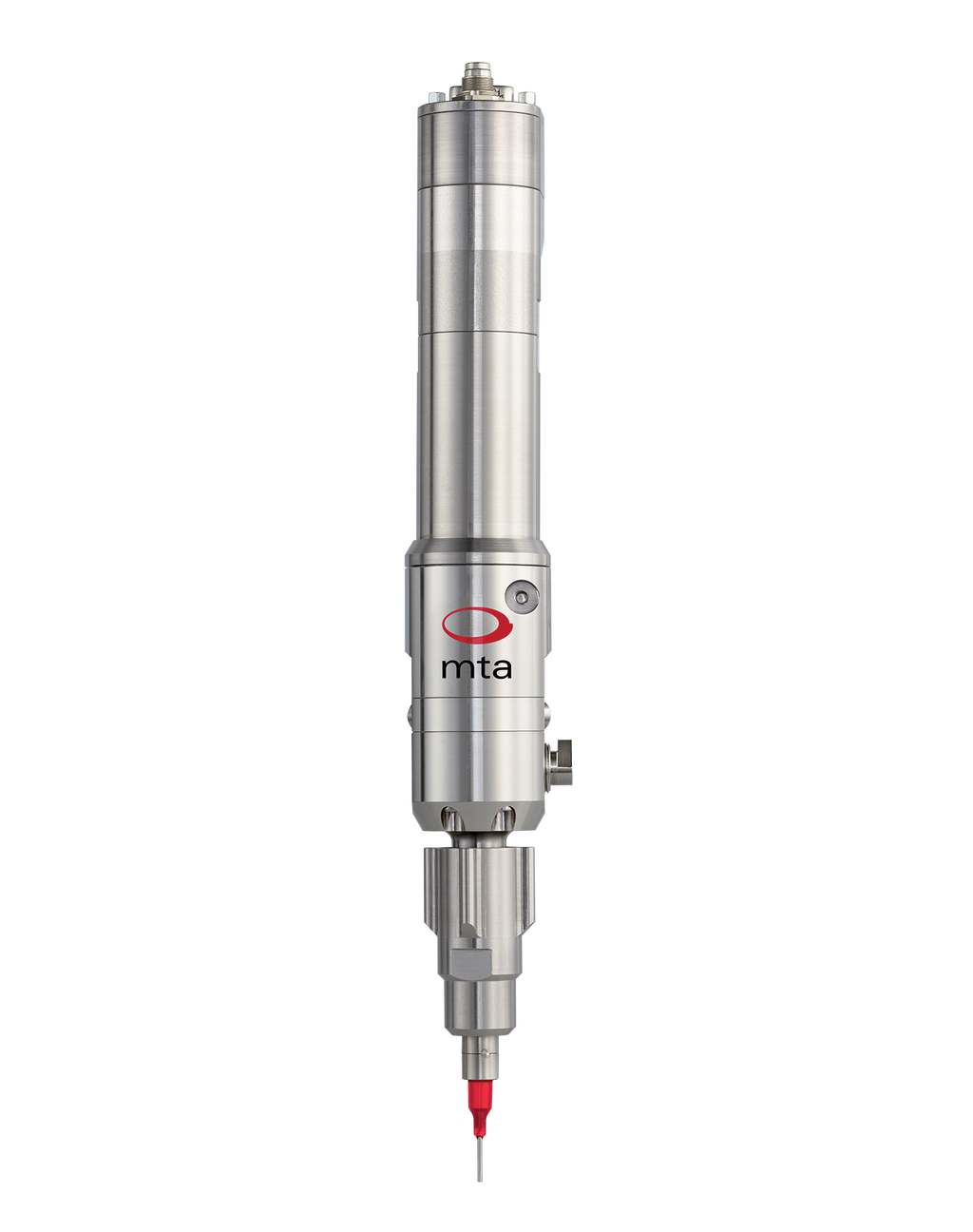

The CFD-1-INOX dispensing kit 11 uses progressive cavity pump technology and offers a high level of versatility. It enables precise volumetric dispensing from 0.003ml/turn to 0.05ml/turn for low to high viscosity mono-component materials, as well as filled materials.

The kit includes a motor, a dispenser and mounting flanges – described in detail in the related equipment tab below.

Depending on the size and type of material to be dispensed, the rotor and stator are available in various materials to ensure mechanical and chemical compatibility with a large range of fluids. Both parts must be selected from the charts below.

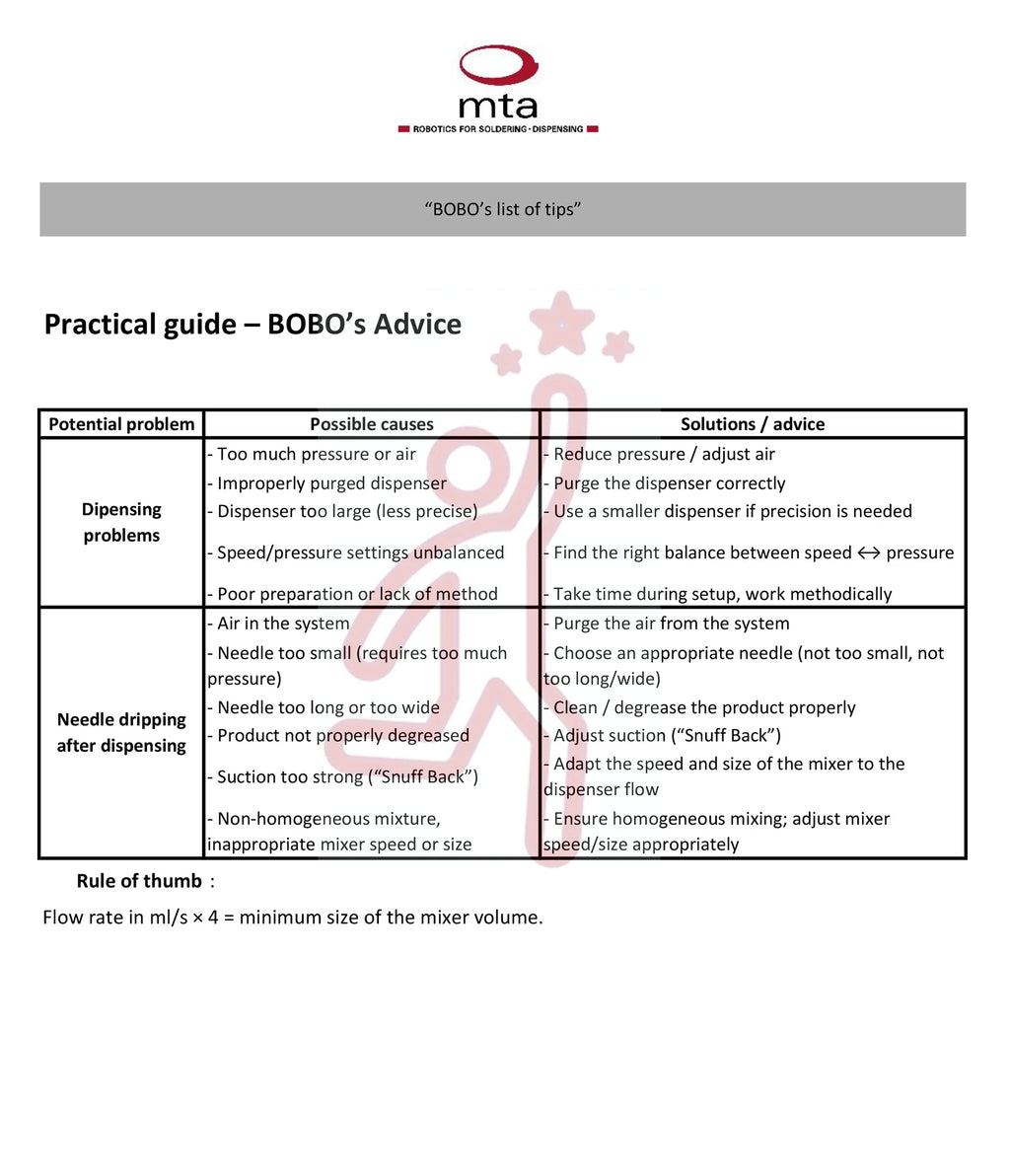

Practical guide for better dispensing: BOBO’s Advice

Our technician has compiled practical tips to help you solve common dispensing problems, such as excessive pressure, overly strong suction or air bubbles. Discover possible causes and simple, effective solutions to optimize your dispensing process.

See the full BOBO’s Advice or click on the fourth image on the right.

Also useful for your application

Product Information

Dispensing volume per turn* 0.003 ml to 0.05 ml/turn
Flowrate 3 to 80 rpm* 0.009 to 4.0ml/Min
Min. dispensing volume * <0.11µl
Max. input pressure 6 bar
Max. dispensing pressure* 20 and 25 bar
Repeatabilitiy >99%
Power supply controller 230V/50-60Hz

*depends on material to be dispensed and dispenser size

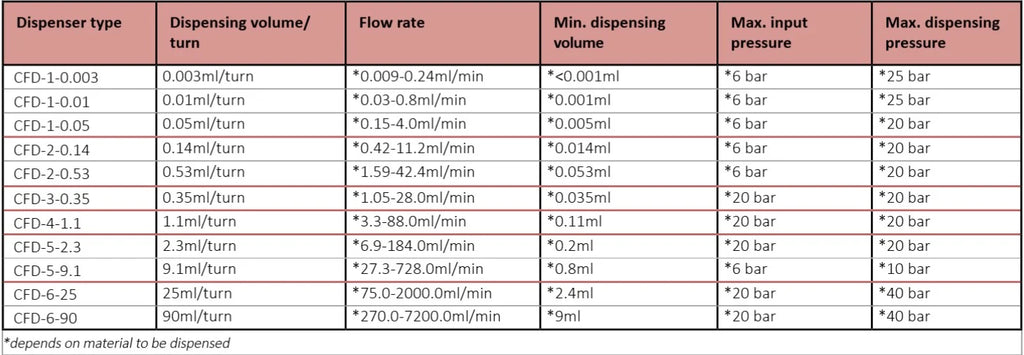

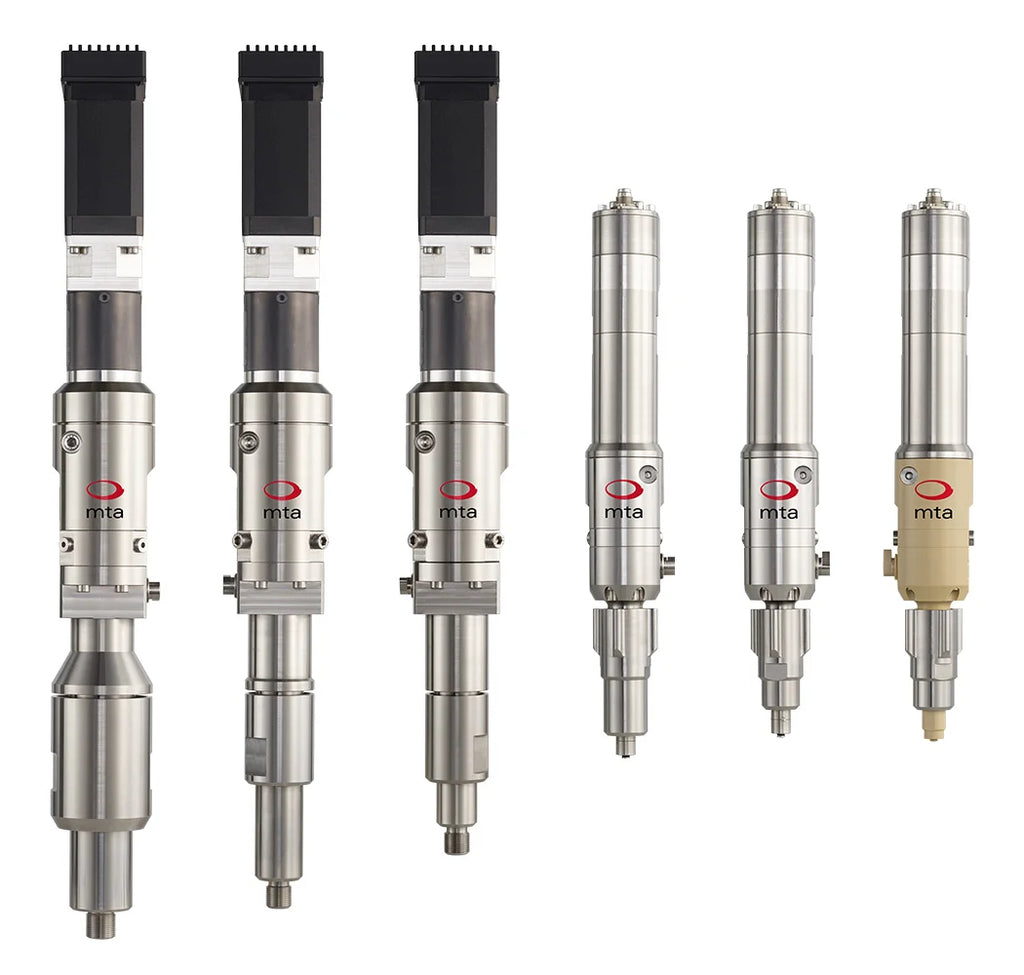

The CFD dispensers are available in several volume and flow rate sizes. The rotors, stators and pump housings are available in
a variety of materials to provide mechanical and chemical compatibility with a broad range of materials. Lastly, customers can
choose from several motors, controls interfaces and mechanical connections such as Luer Lock, threaded and many more.

Included equipment of the CFD-1-INOX dispensing kit 11 :

CFD motor assembly* size 1 and 2 (no driver) – Article number 3I00406-10-100-000
CFD-1 INOX dispenser – Article number 3I00406-20-100-000
Input flange M10x1 ext / Ø 3.5 mm int with seal, size 1 and 2 Inox – Article number 3I00406-20-100-102
Output flange Luerlock size 1 Inox – Article number 3I00406-20-100-202
Assembly tool CFD-1 and CFD-2 – Article number 3I00406-60-100-000

*for mta SEB “Station Editor Box” controller or custom controller

Other mechanical connections such as Luer Lock, threaded and many more are also available.
