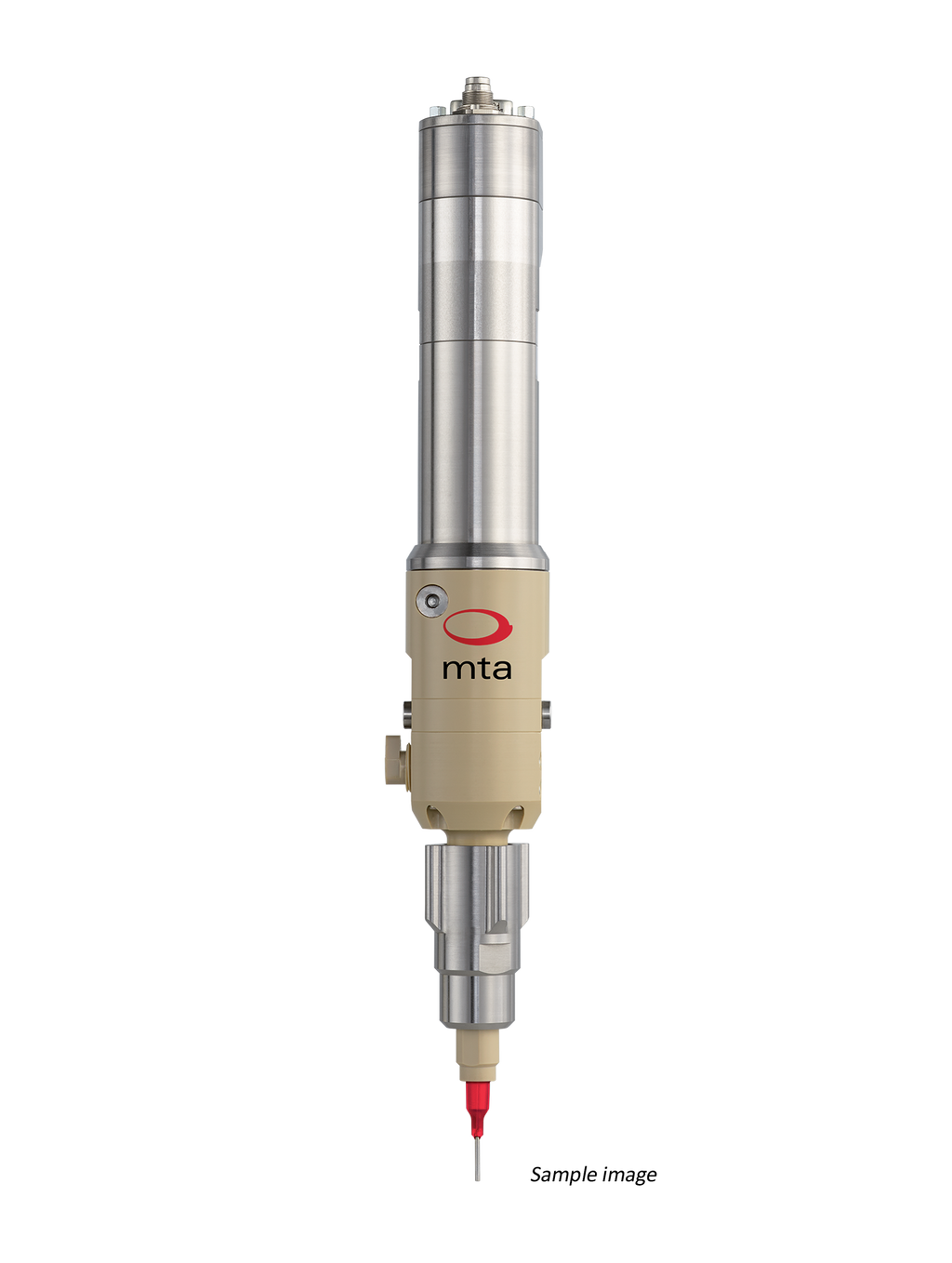

CFD-3-PEEK dispensing kit30 for 0.35ml/turn

CFD-3-PEEK dispensing kit30 for 0.35ml/turn

CHF 5,949.10
CHF 5,949.10
Skip to product information
CFD-3-PEEK dispensing kit30 for 0.35ml/turn
  • CFD-3-PEEK dispensing kit30 for 0.35ml/turn
  • CFD-3-PEEK dispensing kit30 for 0.35ml/turn
  • CFD-3-PEEK dispensing kit30 for 0.35ml/turn
  • CFD-3-PEEK dispensing kit30 for 0.35ml/turn
  • CFD-3-PEEK dispensing kit30 for 0.35ml/turn
CFD-3-PEEK dispensing kit30 for 0.35ml/turn

CFD-3-PEEK dispensing kit30 for 0.35ml/turn

CHF 5,949.10
CHF 5,949.10

Shipping cost incl.

Precise. Versatile. Reliable. The continuous flow solution for anaerobic or agressive materials.

Article number: 3C00730-10-030-000

Dispenser selection guide

Based on your volume and material characteristics, find the most suitable CFD dispenser here or click on the second image on the right.
Additional CFD-kits will be available online soon – please contact us fore more information.

CFD-3 rotor and stator selection

Use the following chart to select the appropriate rotor and stator:

Rotor-type CFD-3
Volume/turn hard chrome plating Passive DLC coating
0.35ml/turn 3I00406-41-000-006 3I00406-42-000-006
Stator-type CFD-3
Volume/turn mta solvent mta filled
0.35ml/turn 3I00406-31-000-006 3I00406-32-000-006

mta solvent / non-filled: high chemical resistance, not for abrasive materials e.g. isocyanate (PU), UV acrylate, solvents, anaerobic adhesives.

mta filled / filled: resistant to chemicals and abrasion e.g. silicone, PU (resin), epoxy (resin), greases, fillers.
Product description

The CFD-3-PEEK dispensing kit 30 uses progressive cavity pump technology and offers a high level of versatility. It enables precise volumetric dispensing for 0.35ml/turn for low to high viscosity mono-component materials, as well as filled materials. The system is particularly suitable for anaerobic adhesives and chemically agressive materials, thanks to its PEEK construction.

The kit includes a motor, a dispenser and mounting flanges – described in detail in the related equipment tab below.

Depending on the size and type of material to be dispensed, the rotor and stator are available in various materials to ensure mechanical and chemical compatibility with a large range of fluids. Both parts must be selected from the charts below.
Selection Guide

Practical guide for better dispensing: BOBO’s Advice

Our technician has compiled practical tips to help you solve common dispensing problems, such as excessive pressure, overly strong suction or air bubbles. Discover possible causes and simple, effective solutions to optimize your dispensing process.

See the full BOBO’s Advice or click on the fourth image on the right.

Also useful for your application

Product Information
Specification
  • Dispensing volume per turn*  0.35 ml/turn
  • Flowrate 3 to 80 rpm*  1.05 to 28.0 ml/Min
  • Min. dispensing volume *  <0.035 ml
  • Max. input pressure  20 bar
  • Max. dispensing pressure*  20 bar
  • Repeatabilitiy  >99%
  • Power supply controller  230V/50-60Hz

*depends on material to be dispensed and dispenser size



The CFD dispensers are available in several volume and flow rate sizes. The rotors, stators and pump housings are available in
a variety of materials to provide mechanical and chemical compatibility with a broad range of materials. Lastly, customers can
choose from several motors, controls interfaces and mechanical connections such as Luer Lock, threaded and many more.
Included equipment

Included equipment of the CFD-3-PEEK dispensing kit 30:

  • CFD motor assembly* size 3, 4 and 5 (no driver) – Article number 3I00406-10-240-000
  • CFD-3 PEEK dispenser – Article number 3I00406-20-350-000
  • Input flange M16x1 ext / Ø 10 mm int with seal, size 3, 4 and 5 PEEK – Article number 3I00406-20-350-104
  • Output flange M14x1 ext / Ø 6.5 mm – size 3 Peek – Article number 3I00406-20-350-205
  • Assembly tool CFD-3, CFD-4 and CFD-5 – Article number 3I00406-60-200-000

*for mta SEB  “Station Editor Box” controller or custom controller



Other mechanical connections such as Luer Lock, threaded and many more are also available.
