Ensuring a high level of process reliability during dispensing.

Article number: 3M00590-01-000-000
Product description

Efficient degassing of high-viscosity materials

The degassing system comes with all the equipment detailed below. Specially designed for high-viscosity materials that do not self-degas, it efficiently removes gas and air bubbles to guarantee reliable, consistent and flawless dispensing in pressure applications.

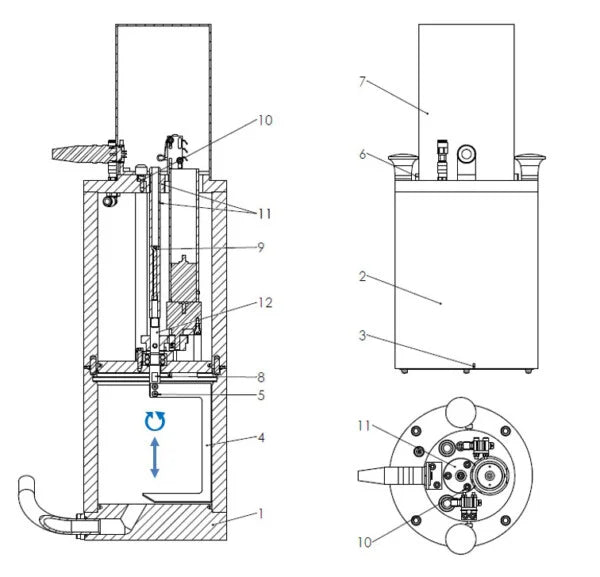

Degassing takes place directly in the tank. With a selection of blades and pitches, the system can be adapted to different products. Thanks to its robust design and the absence of wear-prone seals, the degassing system stands out for durability and low maintenance.

In combination with the thank, the degassing unit prepares products before dispensing. A dedicated controller manages the process for simple operations. In addition, a vacuum pump is available as an option.

Periodic inspection and maintenance

The degassing system requires only limited maintenance. However, regular checks of the blade condition are recommended and replacement should be carried out as soon as signs of wear appear.

In addition, maintenance activities can be performed either on demand or according to the number of operating hours. For greater convenience, you may also request support from mta robotics, allowing experienced specialists to handle these services.

Both the blades and the pitch can be replaced or adapted to the processed product. As a result, the system offers maximum flexibility, ensuring consistent performance and long-term reliability.

3 reasons to choose the degassing system

  1. Reliable and user-friendly – Perfectly designed for handling high-viscosity materials with ease.
  2. Bubble-free results – Ensure a flawless, consistent output for your next dispensing application.
  3. Easy to clean and maintain – Minimize downtime with a system built for quick maintenance.
Selection Guide

Also useful for your application

Product Information

Specification

Specifications of the degassing system:

  • Power supply  230/50Hz
  • System type  standalone on/off switch to start the system
  • Cycle status  overview of the current cycle
  • Tank volume  1.3L
  • Product outlet  quick-connect fittings
  • Pneumatic fitting  diam. 6 mm
  • Working pressure  max. 4 bar
  • Overpressure system  safety valve
  • Level type  low level sensor

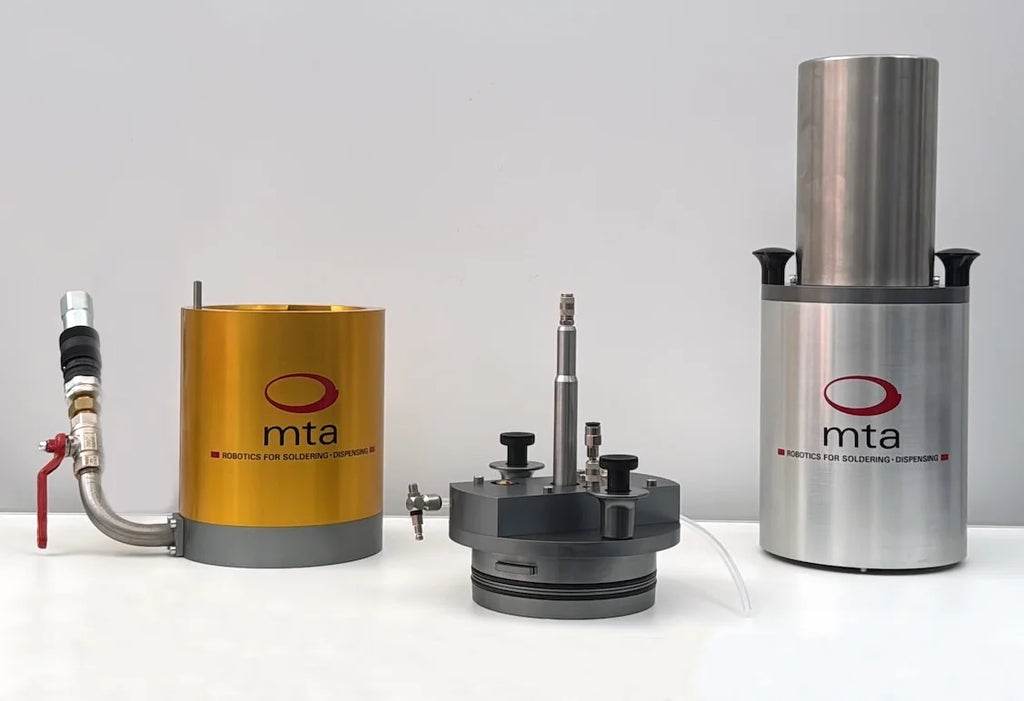

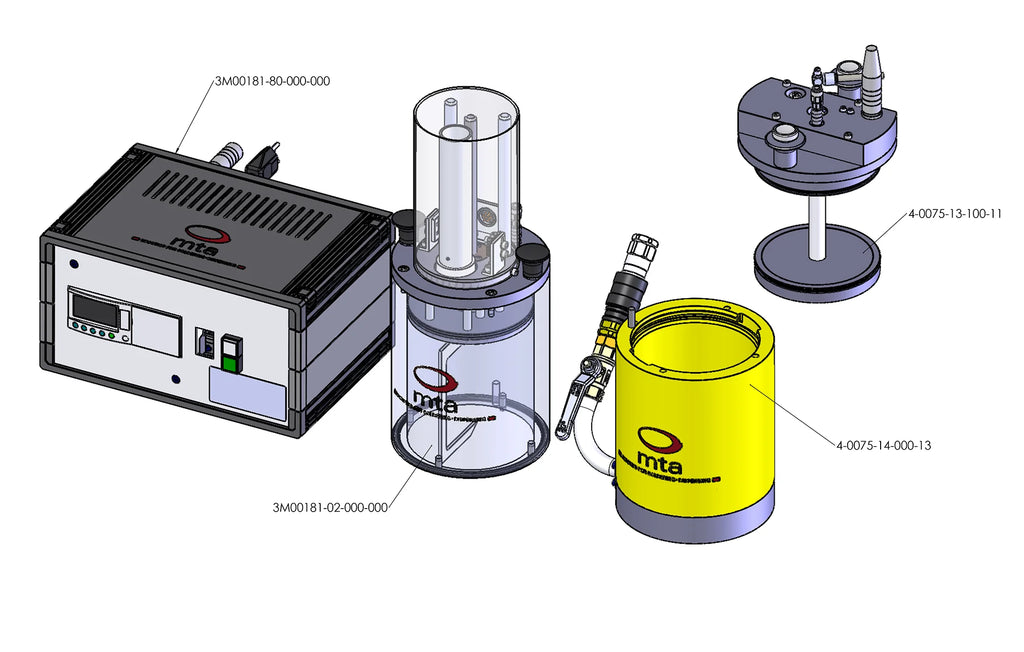

Included equipment

Included equipment of the degassing system:

  • Grey degassing unit – Article number 3M00181-02-000-000
  • Gold tank 1.3l with valve – Article number 4-0075-14-000-13
  • Piston and cover set – Article number 4-0075-13-100-11

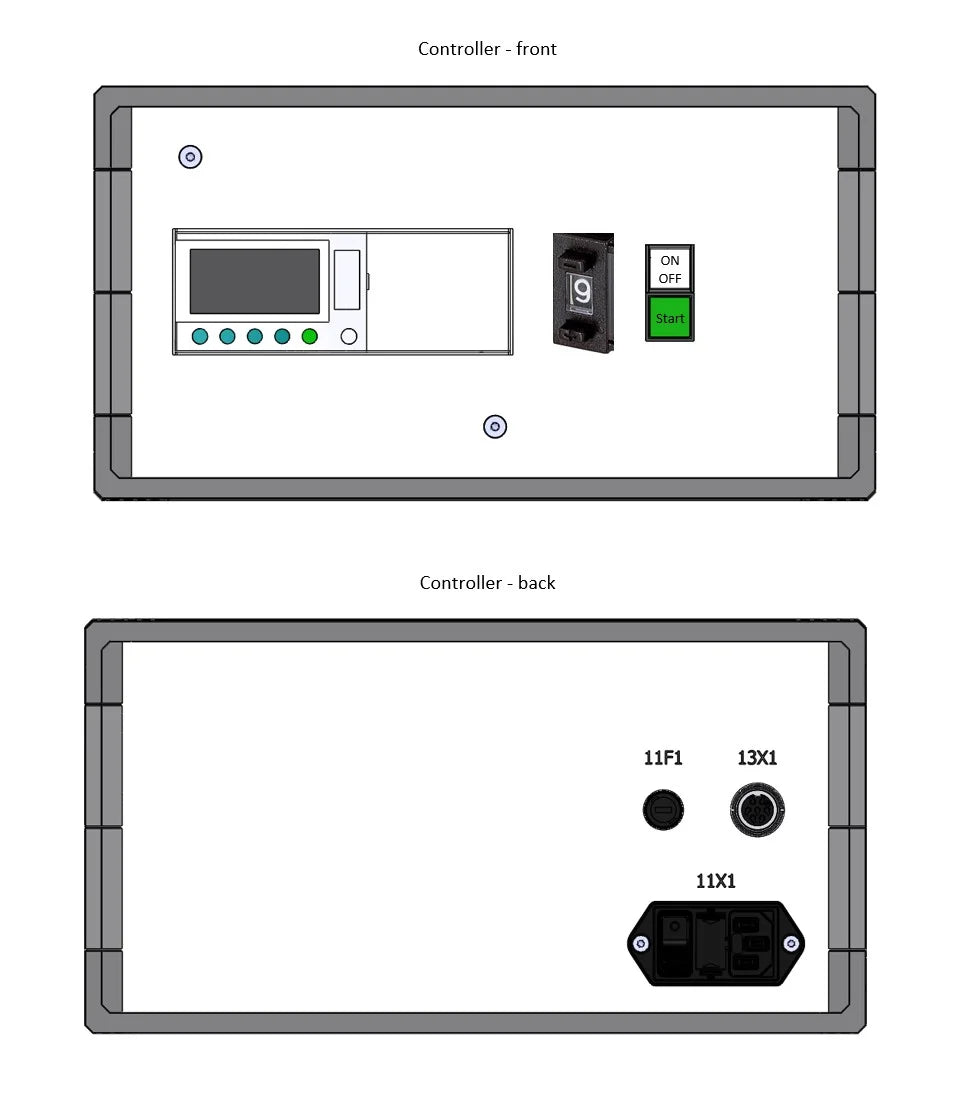

  • Controller  Article number 3M00181-80-000-000
