Iron soldering head system with integrated software and cables.
Article number: 6D00317-01-001-000

Very fast and easy integration

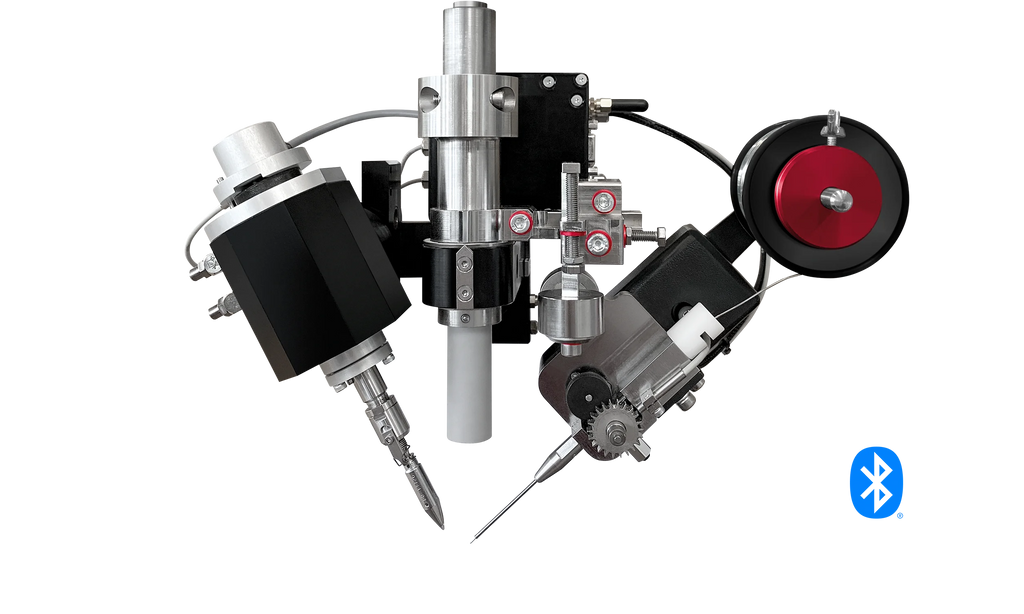

The plug-and-play MSH150 iron soldering head includes an integrated software and the following equipment that is detailed below.

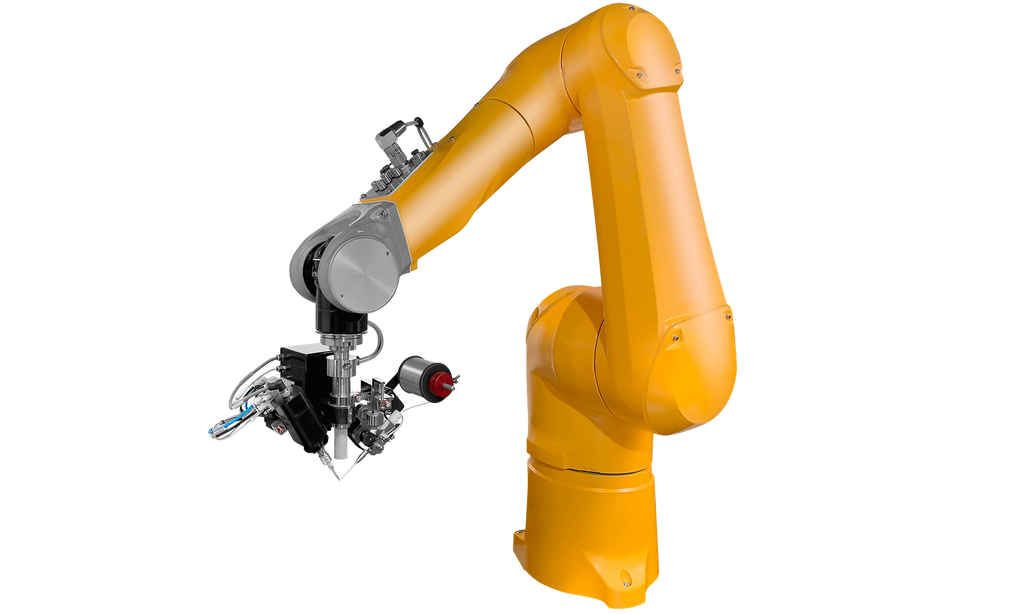

In addition, mechanical fixing flanges are available in our Webshop, with which the soldering head can be easily mounted on a variety of standard robots. These robots include: ABB, Denso, Fanuc, Kawasaki, Kuka, Mitsubishi, Motoman and Stäubli (non-exhaustive list). See robot flange compatibility chart.

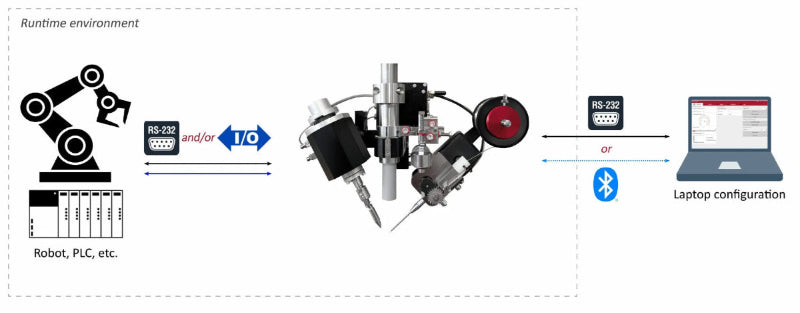

Furthermore, this turnkey soldering head can be programmed via Bluetooth or cable.

Above all, only three operations need to be performed:

1. Firstly, mount the soldering head.
2. Secondly, wire the cables.
3. Thirdly, install the software.

As a result, and thanks to its unique all-in-one design, the iron soldering head is simple to use, to configure and to integrate. Simply set up your soldering process yourself and get started right away.

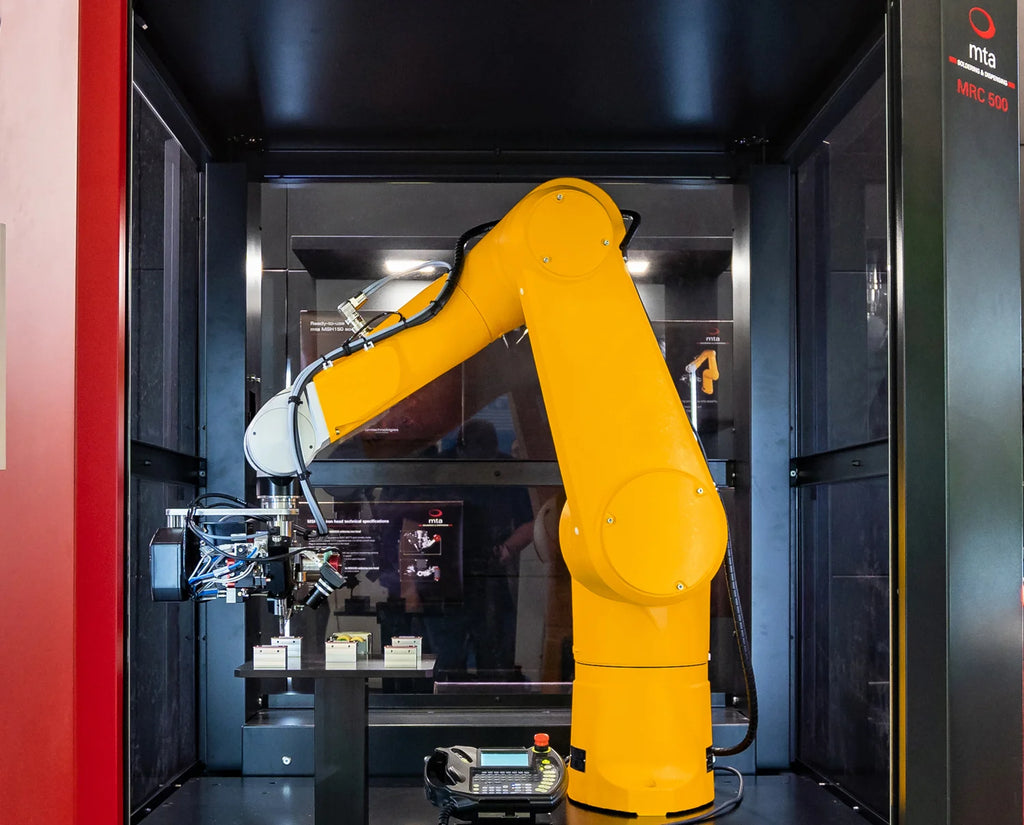

Last but not least, the plug-and-play MSH150 iron soldering head is available exclusively online, ensuring short delivery times. If you are looking for an automated solution, we offer a purpose-built, standardized table-top robot that can be equipped with various mta soldering heads, tailored to your application.

N.B. Access to the technical documentation, drawings and MSH Configurator software is granted only upon order. Please log in using the email address associated with your MSH150 head purchase. For further assistance, please contact webshop@mtarobotics.com.
Product description
Selection Guide

Also useful for your application

Product Information
Specification

Specifications of the MSH150 iron soldering head

  • Iron power  150W
  • Iron temperature  adjustable to 450°C (837°F) and standby mode
  • Temperature accuracy  ± 2°C (after stabilization; regulation over 0-24V)
  • Electrical controller  integrated in the head
  • Power supply controller  24V
  • Configuration interface  Bluetooth – RS232
  • Communication interface  RS232 – I/O
  • Air pressure  max. 6 bar
  • Solder wire diameter  0.3 – 1.2 mm (1.6 mm upon request)
  • Solder wire quantity accuracy  ±2.5%
  • Iron head dimensions  334 x 203 x 205 mm (without monitoring camera)
  • Iron head weight  ~4.8 kg (with tin spool)
Included equipment

Included equipment of the MSH150 iron soldering head kit:

  • Soldering head with structure, iron and heating element
  • Kit cables MSH150 7m – Article number 6D00317-00-003-070 including the following three cables:
  • – XLR 5-poles power cable of 7m – Article number 6D00317-00-003-071
  • – I/O  sub-D 15-poles cable of 7m – Article number 6D00317-00-003-072
  • – RS232 sub-D 9- poles cable of 7m – Article number 000.005.602
  • Solder wire-guide kit for 0.7-0.8 mm solder wires – Article number 5-0048-02-000-30
  • → Other types of standard wire-guide kits or reinforced wire-guide kits are available and can be ordered separately.
  • Chisel shaped solder tip 150W 2.2mm V4G – Article number 5-0005-99-652-30
  • Chisel shaped solder tip 150W 3.0mm V4G – Article number 5-0005-99-650-30
  • → Other types of solder tips are available and can be ordered separately.
  • Almit soldering wire SR-38 RMA LFM-48S 0.8mm – Article number 000.001.247
  • → Other types of soldering wires are available and can be ordered separately.
  • Complete iron cleaning unit NF02 – Article number 5-0004-02-000-23
