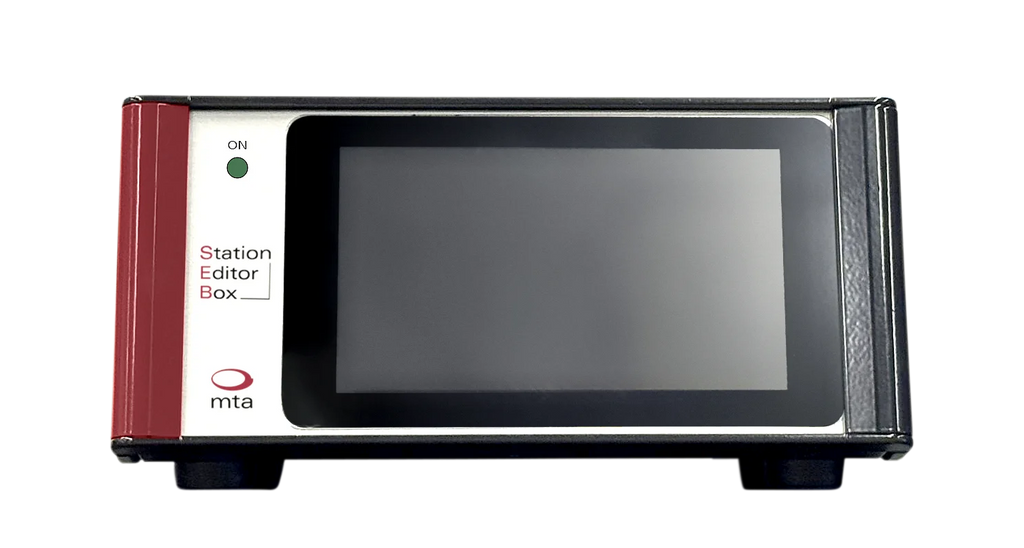

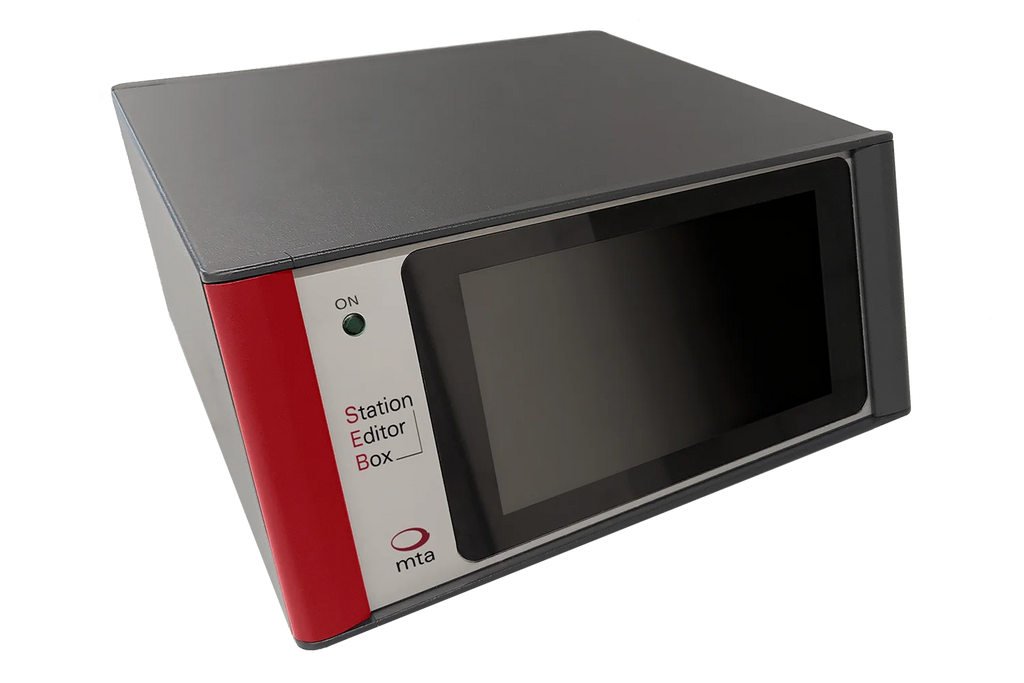

Station Editor Box 4 kit – Smart multi-dispenser controller

The SEB Station Editor Box 4 kit is a compact, advanced controller developed by mta robotics. It operates up to four mta CFD dispensers, making it a versatile solution for modern dispensing.

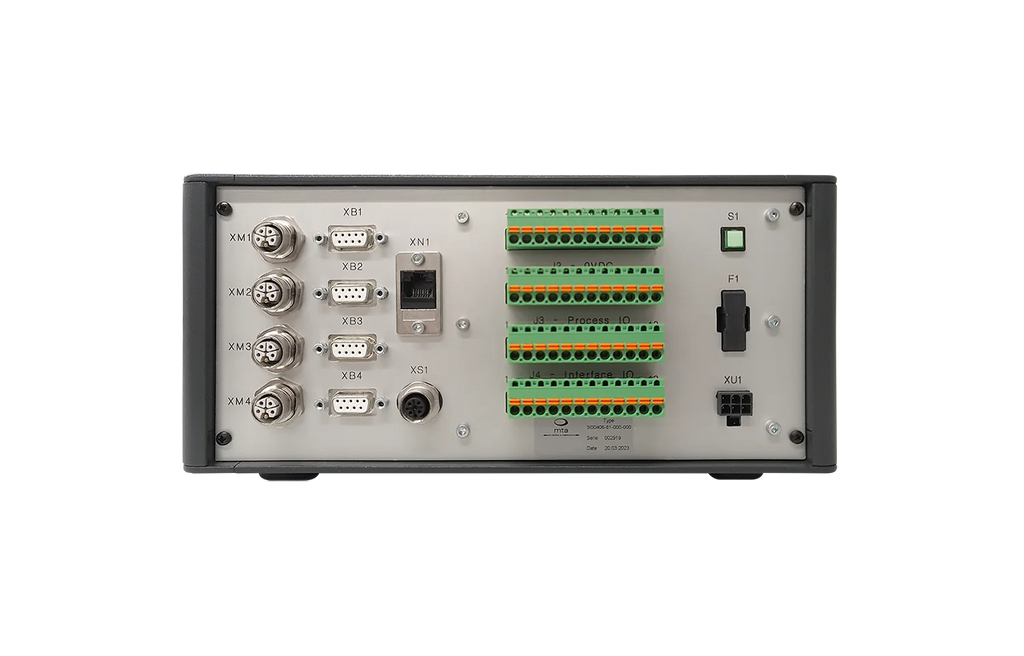

To offer maximum flexibility, the SEB supports both standalone operation and automatic slave mode controlled by a master unit. This dual configuration simplifies integration into machines and production lines, where the SEB connects easily via discrete digital I/O or Ethernet (TCP-IP) communication.

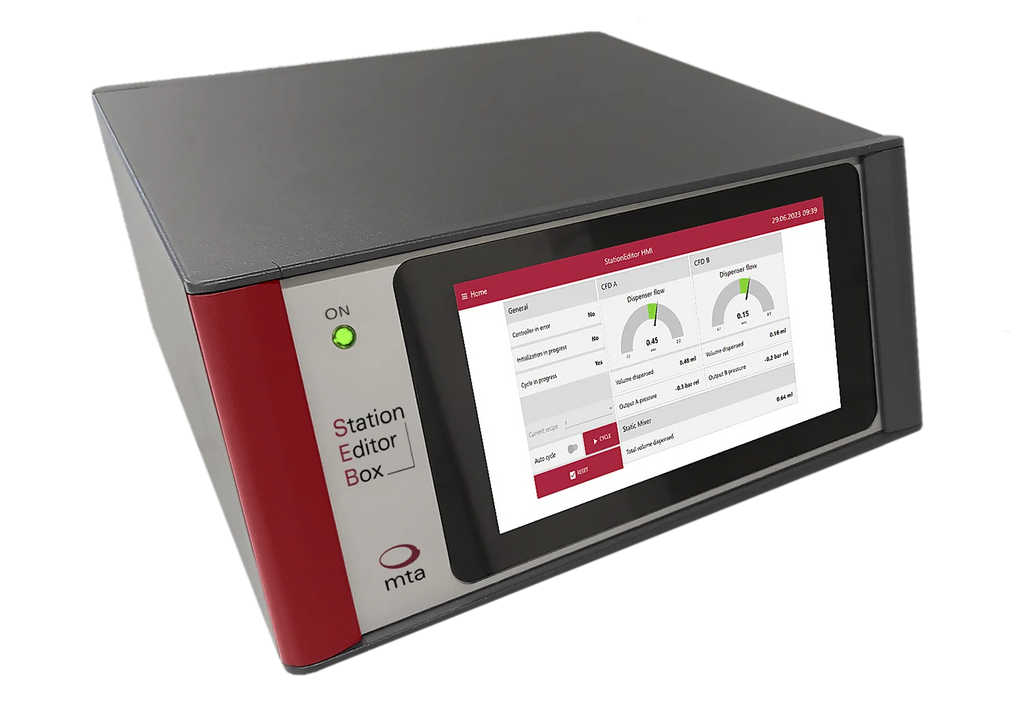

In addition,  the integrated 7-inch touchscreen provides a user-friendly interface. It allows the operators to adjust parameters precisely and fine-tune dispensing settings.

Thanks to its compact design, versatile modes and powerful control features, the Station Editor Box streamlines fluid dispensing processes. As a result, it ensures efficient operation across a wide range of applications.

Motor control with Station Editor Box

The SEB enables control of up to four motors. Its configuration options include:

• Up to four mta CFD dispensers can be connected simultaneously.

• Dynamic Mixer integration: when a dynamic mixer is used, it occupies connection 4. In this setup, up to three CFDs can be connected on connections 1–3.

This flexible setup ensures efficient management of multiple dispensers while maintaining seamless integration with dynamic mixers.

Included equipment of the Station Editor Box 4:

• Station Editor Box 4, display 7″ – Article number 3I00406-81-000-00
• Power unit 1000W, for 4x CFD 3,4&5 – Article number 3I00406-81-500-000
• Power cable 5m for CFD 3,4&5,  (M12 L-CODED F)  – Article number 000.006.288
• Encoder cable 5m for CFD 3,4&5 (M12 17P F) – Article number 000.006.304

Specifications of the Station Editor Box 4 kit:

• Power supply  48V
• System type  standalone or integrated
• Display  7″ touchscreen (HMI)
• Connectivity  digital / analog / Ethernet / Wi-Fi
• Controller  mta based control system
• Control capabilities
  – Up to 4 motors
  – Dispensing control
  – Static mixer control
  – Tank management
