7 reasons to choose the mta classic soldering iron

  1. The soldering tip is separate from the heating element, so users do not need to change the heating element as frequently as the tip. Therefore, this reduces consumable cost.
  2. A pneumatically-dampened spring lowers the tip to allow compliance between the tip and part. This provides good thermal transfer while protecting the parts and tip. Also, the robot does not use the z-axis to move the iron tip.
  3. There are no stamped sheet metal or die-cast parts. We machined the robust head structure from solid material to provide a rigid platform for the iron and wire feeder.
  4. The clamping system provides easy adjustment and precise alignment. Once tightened, the position will not change until loosened – there is no risk of accidental misalignment as a result of heavy use or while changing tips.
  5. We mounted our precise jam-free wire feeder directly on the head – at the solder joint. Consequently, this provides tight process control of the wire feed. Solder wire does not kink or get jammed since there is no long feed tube. Once the correct amount is fed, the wire feeder pulls the wire out of the solder pool to prevent solder spatter.
  6. We integrated the fume extraction nozzle into the head itself. Therefore, it is mounted directly above the solder joint to safely remove fumes.
  7. In addition to the iron, wire feeder and fume extraction nozzle, the head can support several optional devices such as: cameras, flux dispensers, dual feeders, dual irons and the list goes on.

We also offer a Plug-and-play MSH150 iron soldering head  that is easy to install and enables fast integration into automated soldering processes.

 Contact us for more information
Product description

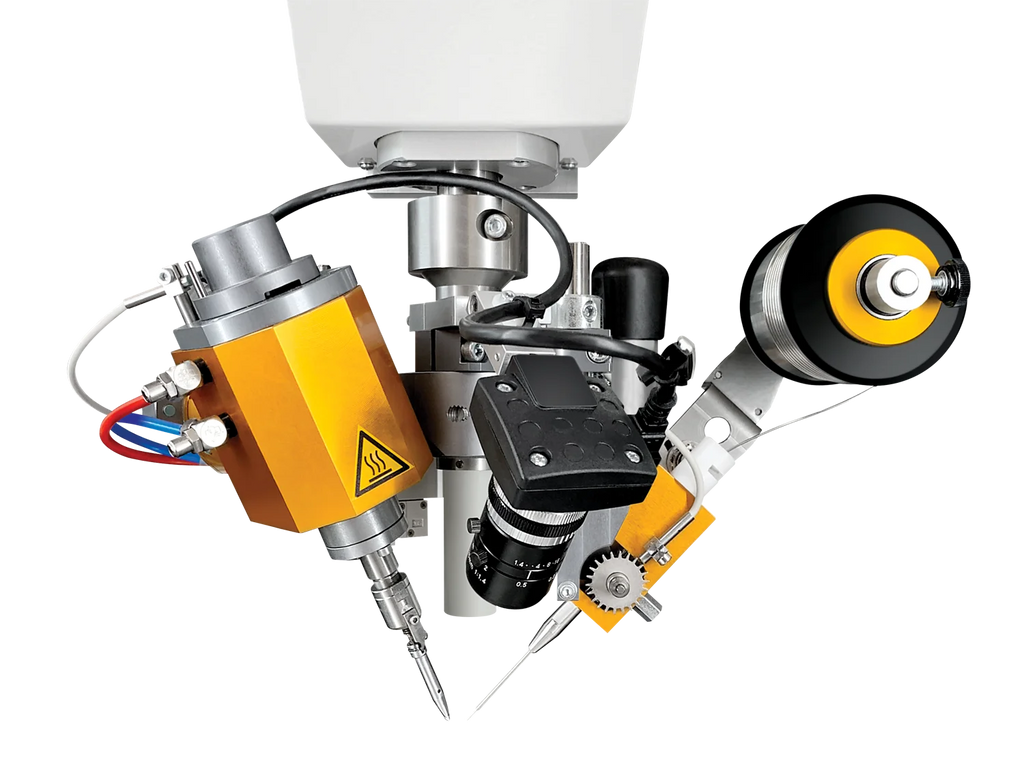

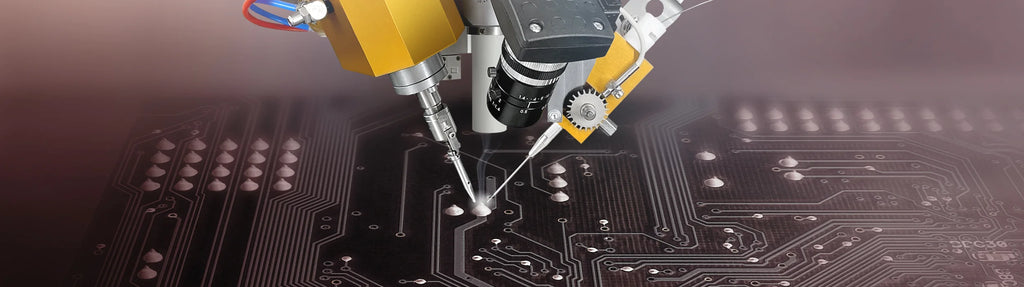

mta’s classic iron head for soldering robots is our most popular soldering technology, likely because many customers are upgrading from hand-soldering with the iron. This solution is not only ideal but also cost-effective, as it requires less skill and training than manual soldering. As a result, it ensures greater stability and repeatability of the soldering process.

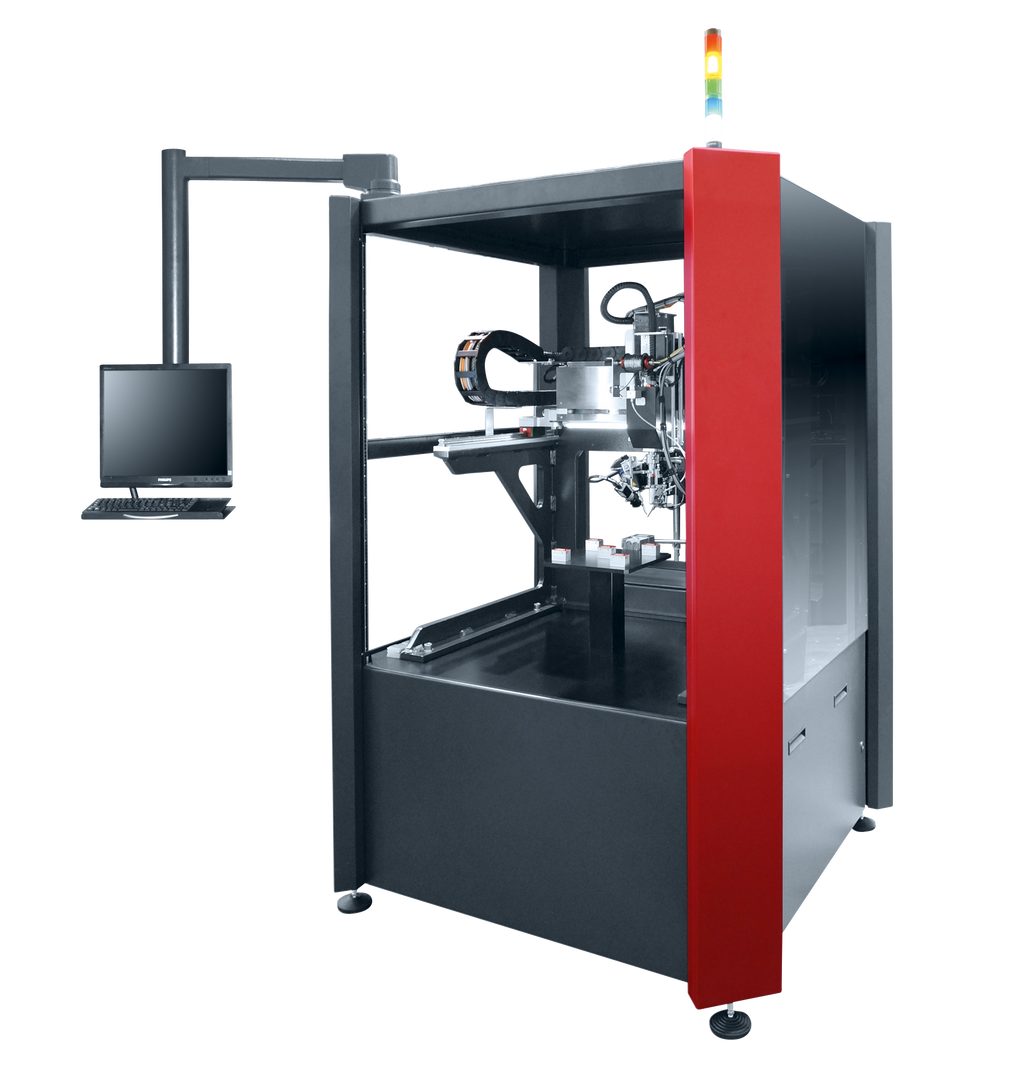

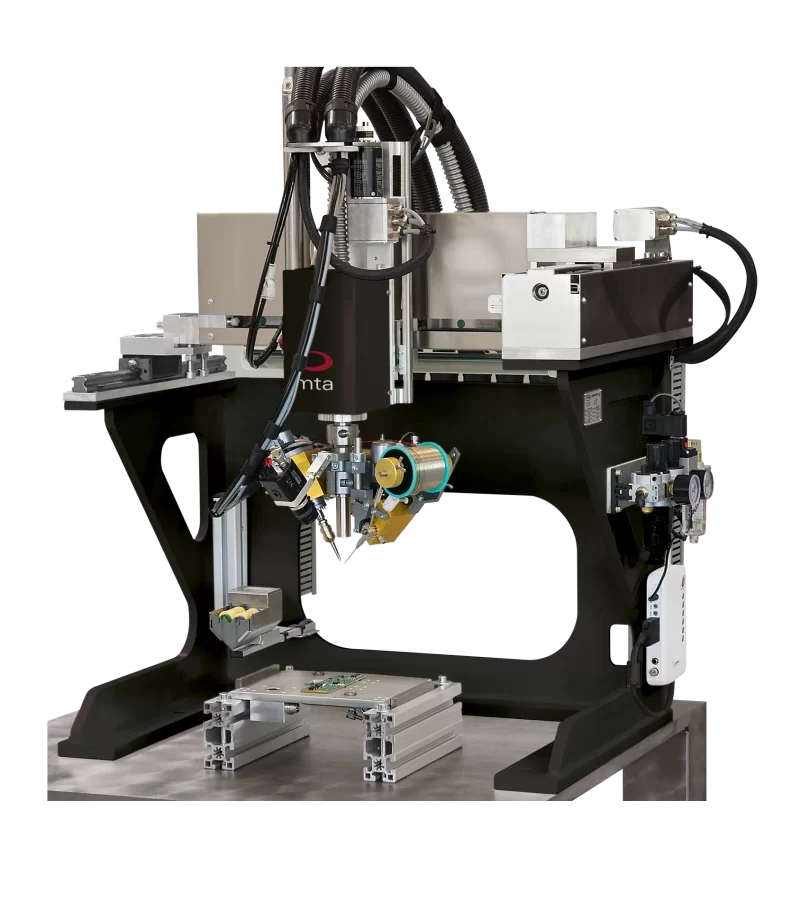

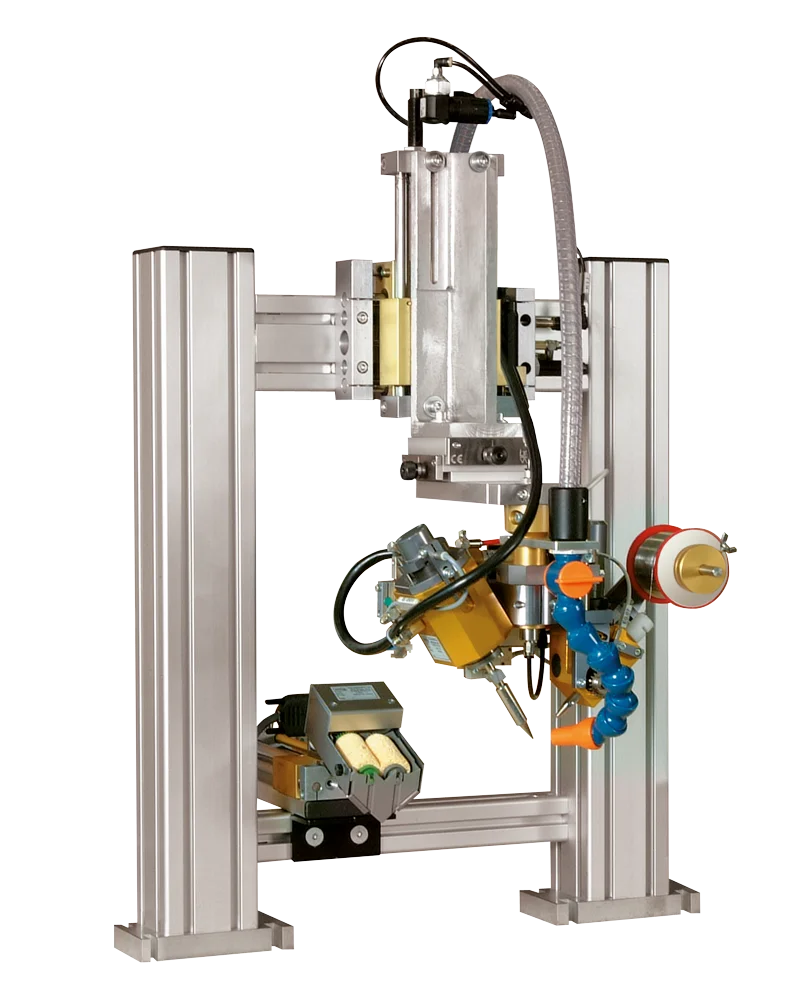

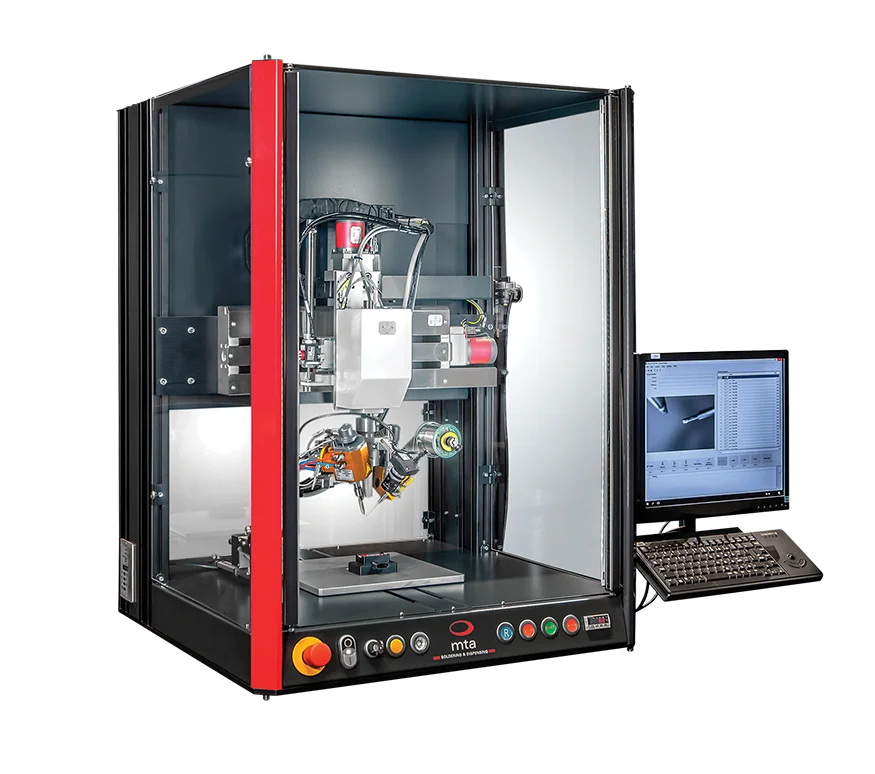

Moreover, we can offer turnkey solutions by integrating the classic iron head for soldering robots on any of our standard soldering robots including: MRC500, TR300, OEM and station.
Selection Guide

7 reasons to choose the mta classic soldering iron

  1. The soldering tip is separate from the heating element, so users do not need to change the heating element as frequently as the tip. Therefore, this reduces consumable cost.
  2. A pneumatically-dampened spring lowers the tip to allow compliance between the tip and part. This provides good thermal transfer while protecting the parts and tip. Also, the robot does not use the z-axis to move the iron tip.
  3. There are no stamped sheet metal or die-cast parts. We machined the robust head structure from solid material to provide a rigid platform for the iron and wire feeder.
  4. The clamping system provides easy adjustment and precise alignment. Once tightened, the position will not change until loosened – there is no risk of accidental misalignment as a result of heavy use or while changing tips.
  5. We mounted our precise jam-free wire feeder directly on the head – at the solder joint. Consequently, this provides tight process control of the wire feed. Solder wire does not kink or get jammed since there is no long feed tube. Once the correct amount is fed, the wire feeder pulls the wire out of the solder pool to prevent solder spatter.
  6. We integrated the fume extraction nozzle into the head itself. Therefore, it is mounted directly above the solder joint to safely remove fumes.
  7. In addition to the iron, wire feeder and fume extraction nozzle, the head can support several optional devices such as: cameras, flux dispensers, dual feeders, dual irons and the list goes on.

We also offer a Plug-and-play MSH150 iron soldering head  that is easy to install and enables fast integration into automated soldering processes.

Product Information
Specification
  • Iron power  150W/24VAC or 170W/48VAC
  • Iron temperature  adjustable to 450°C (837°F) and standby mode
  • Temperature accuracy  ± 5°C (regulation over a 4-20mA current loop)
  • Plug-in connection  M12-A 12pin male connector
  • Power supply controller  115/230V – 50/60Hz
  • Air pressure  max. 6 bar
  • Iron head dimensions  292 x 225 x 184 mm
  • Iron head weight  ~2.9 kg
  • Solder wire diameter  0.3 – 1.2 mm (1.6 mm upon request)
  • Solder wire quantity accuracy  ±2.5% / Power supply: 24VDC
Included equipment

The standard classic soldering iron head comes well-equipped:

  • Soldering head structure
  • Heating element including soldering iron
  • Wire feeder
  • Solder tip
  • Solder wire
  • Fume extraction nozzle
  • Cleaning unit
  • Controller

Options within mta platforms:

  • Monitoring camera
  • Vision for recentering
  • Vision for quality inspection
  • Fume extraction system
  • Part presence sensor
  • Part height measuring sensor
  • Automated sponge dampening
